Wednesday, November 14, 2018

Users explain Automatic Link Establishment #hamradio

This information came from HFLINK.net.  Give ALE a try and see who else might be waiting for a QSO.

==HFLINK NEWS==

October 2018 - Hundreds of ham radio operators around the world have been active for the past several weeks, testing their radio techniques for interoperability. They're not competing in a contest or trying to win awards. They have been participating in the High Frequency Interoperability Exercise 2018 (HFIE-2018), an operating event that takes place on the airwaves every few years, sponsored by HFLINK

HFIE-2018

Dialing Up A Ham Friend On HF
The ham operators are initiating contact by dialing up each other's call sign using selective calling (Selcall) and Automatic Link Establishment (ALE). They are making informal calls to engage in voice or texting communications on High Frequency (HF) in the international Amateur Radio Service frequency spectrum.

Image: courtesy of HFLINK

Calling Without A Sked or Net
Instead of dialing a telephone or using the internet, the direct calls are initiated on their HF radio transceivers, which are independent of land infrastructure or satellites. Simply dialing a call to a friend may seem like an ordinary task on a mobile phone, but it is surprisingly unusual on ham radios. Most HF ham operators are more accustomed to randomly calling "CQ" or gathering together in scheduled "skeds" and meeting group "nets" to share a frequency together.

HF communications depend on bouncing signals off the ionosphere, which is prone to the variability of solar influence and the changing conditions of the earth's geomagnetic field. It has been particularly difficult with the solar cycle at its minimum this year. This variability has led to a wide variety of reliable operating techniques, procedures, and radio systems designed to benefit from the shortwave spectrum.

HFLINK Coordinator, Bonnie Crystal KQ6XA, remarked, "We are seeing a lot of recent interest in selective calling. The statistics we gathered during HFIE-2018 show an increase of about 350 percent. There are now about 5000 registered ALE and Selcall callsigns globally in the net."

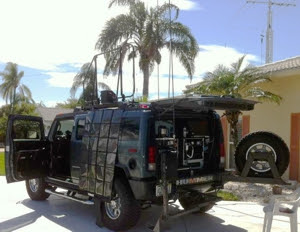

Kurt KJ4AYT's solar-powered ALE-Selcall HF mobile 4WD.
Photo: courtesy of Kurt Stephens KJ4AYT.

Max Haselbach HB9ZEI in Switzerland, commented about the exercise, "I didn't know much about ALE at the beginning of this event. While operating and chatting on hflink.net , I met a lot of very helpful operators. I made links to Ced F4GFZ, and exchanged AMD texting and received calls from Thorsten DK1ESD. They guided me through on how to do it better."

Codan 2110 manpack radio with Selcall and ALE in use.

Selcall and ALE Equipment
Selcall and ALE are slightly different formats that achieve a similar purpose: call up a specific ham operator or group of operators over the air using incidental tones. Both selcall and ALE are common in the radio equipment of HF commercial, governmental, or non-governmental organizations (NGO) ; but, amateur radio equipment manufacturers have traditionally been slow to advance their technology in the area of selective calling features. So, many of the operators working the HFIE-2018 event are utilizing commercial land mobile HF SSB radios with built-in ALE and Selcall, that have been adapted for ham radio service. Most are using computer-connected ham transceivers, running program apps such as PC-ALE, MARS-ALE, MULTIPSK, or HamRing.

[IMG]
Tei JH1ESB's ALE-Selcall auto-tuned rooftop antenna farm above Yokohama, Japan, Icom AH-760 on left, Icom AT-140 auto-tuning a Super Antenna MP1C on right.

ALE is a standard or optional feature in HF land mobile radios such as: MicomCodanBarrettIcom IC-F8101HarrisRockwell-CollinsRohde & Schwarz, and Kenwood TK90

[IMG]
Tei JH1ESB's ALE-Selcall station with 2 Icom IC-F8101 radios, in a synchronized system.

Antennas for ALE and Selcall
While any type of antenna system can be used for ALE and Selcall, the techniques of HF scanning and frequency agility often leads to a different approach from traditional amateur radio single-band or slowly-tuned antennas. Broadband antennas are the choice of many ALE operators, especially the T2FD broadband folded dipole or BBTD antenna, which can cover the whole HF spectrum without needing a tuner. Autotuners are very popular for mobile HF operation, as well as base stations. The objective for the system is to constantly scan receive channels at about 1 or 2 channels per second, and then be able to respond to a call on any given HF frequency within 2 or 3 seconds.



About Selcall in Ham Radio
Hams have been using the HF Selcall standard, which is known as CCIR493-4 Selective Calling, for about 25 years. It consists of incidental tones in the audio range that can selectively call, trigger an alarm tone, or open the squelch. It was originally developed in the early 1970s by CCIR (Consultative Committee on International Radio), a forerunner group for ITU (International Telecommunication Union) advisory and technical standards. This selcall system became the basis of the Global Maritime Distress and Safety System (MDSS DSC) which is now widely utilized in ships and boats. The HFLINK information resource has supported it since 2003 as implemented in 4-digit (Open Selcall) and 6-digit (United Nations Selcall) format, and has published the open standards on the web.

[IMG]
Tony KA2UFO's portable ALE-Selcall radio setup, Barrett on left, QMAC on right.

CCIR493-4 Selcall is available in many different types of equipment suitable for ham radio use. Selcall is an embedded feature in HF land mobile radios such as: Codan (all models), Barrett (all models), QMAC HF-90, Vertex VX-1210, Icom IC-F series, and Micom Z. The SC2 selcall microphone by Jenal can be adapted to most ham radios to easily.

[IMG]
The Naidia COOEE board by Richard VK5ZLRis a plug-in unit that provides selcall for Icom ham radio transceivers.

[IMG]

A new computer app called HamRing, has just been released for Selective Calling, in an experimental demo version, coinciding with the HFIE-2018. Devin K6DRS developed HamRing in collaboration with Bonnie KQ6XA. HamRing is available for download at http://hflink.com/hamring

HamRing developer, Devin Butterfield K6DRS in California, commented, "HamRing is focused on an intuitive user interface and easy set-up. In a pinch, it even works with good old acoustic coupling, where you hold the mic up to the speaker. Many innovative features are planned beyond the normal selcall."

[IMG]
Tony KA2UFO's  ALE base station with PCALE
Photo: courtesy of Tony Rycko KA2UFO

Varuliantor YD0OXH is Coordinator of a large group of active ALE stations for the HF Emcomm ALE net, which covers many islands of Indonesia.
Photo: courtesy of Varuliantor Dear YD0OXH

About ALE in Ham Radio
Ham operators have been utilizing ALE in the Amateur Radio Service for about 20 years, since the late 1990s. The ALE standard was developed in the early 1980s in USA as MIL-STD 188-141 / FED-1045, and is known internationally as 2G-ALE. It grew out of an effort to improve interoperability of selective calling radio equipment made by various manufacturers. It became the de facto standard for adaptive HF radio systems, which keep track of HF propagation and available frequencies to improve the dependability and speed of calling stations. An active international net of ALE ham operators was formed in 2001 and has been in continuous 24/7/365 operation since 2007.

Steve N2CKH, Developer of PC-ALE, at his home station
Image: courtesy of Steve Hajducek N2CKH

PC-ALE is a very popular computer program (Windows) among ham operators that provides a world-class ALE controller when combined with an amateur HF SSB transceiver. The scanning capability and a wide array of advanced features found in PC-ALE can basically turn a ham radio into an ALE radio system. PC-ALE is available for free and was created by Charles G4GUO, with new development and improvements by Steve N2CKH. The MARS-ALE program by Steve N2CKH, is also utilized by hams who are MARS members and operate ALE on the MARS systems.

[IMG]

MULTIPSK by Patrick F6CTE is an advanced ham computer program that also provides excellent ALE calling operation and other functions.

Brian WB6RQN / Aeronautical Mobile with Micom 3 transceiver running ALE on HF

Brian Lloyd WB6RQN, flew the historic Amelia Earhart route around the world in 2017 with ALE HF in his plane. Later that same year, he led the Dominica Airlift Angels To Eden relief operation after hurricane Maria wiped out the island. The project lifted supplies and communications, including ALE radios, to Dominica.

This year, Brian had some sage advice for some of the other operators in the HFIE exercise: "So, just having an HF station on-the-air, or even in a go-box, doesn't make you part of an effective communications solution... You also need to know how to get another station at the other end set up and interfaced with the people on the other end that need to communicate back to where you are. Only then do you become an effective component in a disaster and relief communications process."

[IMG]
Brian WB6RQN with the Dominica Airlift Angels To Eden flights brought relief supplies and communication after hurricane Maria in 2017.

[IMG]


The HFIE 2018 went from 12 to 22 October. For more information about upcoming events, please check the HFLINK websites and forums.

Amateur Radio Service operators in the event activated their stations on the air using the same standards as non-governmental (NGO) and government organizations worldwide for interoperable HF communications. The focus of operation during this exercise was ALE (Automatic Link Establishment) and SELCALL (HF Selective Calling).

[IMG]

Ham operators in the exercise were invited to participate at any time during the 10 days of the free and open informal event. Operators got real-world experience and become proficient in HF Interoperability communications using the following suggested methods:
  • Initiating and responding to ALE calls
  • Initiating and observing ALE soundings
  • Linking up with fellow operators for texting
  • Linking up for SSB voice QSOs
  • Sharing helpful information on setting up ALE
  • Initiating and responding to SELCALL calls
  • Sharing information on setting up SELCALL
  • Exchanging local status and infrastructure reports

There are thousands of amateur radio operators worldwide with ALE-capable and SELCALL-capable stations. All are invited to discuss, learn, and ask questions using the HFN Comm Centre chat room on HFLINK.NET. The experience gained by operator participation in the exercises can also be useful for HF Emergency/ Disaster Relief communications (EMCOMM).

Wednesday, November 07, 2018

Who will you work on 10 meters? @TenTenNet


Ten Meters is one of my favorite bands. Even when it's not "open", it's frequently open. With the sunspots on the rise, so should the activity on the band increase.


Have you found http://ten-ten.org/daily_nets.html yet? Nets listed there will help determine if the band is open. If you look at http://www.qsl.net/steelcity/nets/whichnet.html, one will see a search box that lets you know which nets are in operation.

http://www.dxwatch.com/dxsd1.php?f=92 or http://hamspots.net/10/ will also give you DX Cluster spots, just for 10 meters.

At http://www.vhfdx.info/spots/warnings.php, one can get email alerts when six meters is open. If SIX is open, it's almost a given that TEN is open.

http://www.dxmaps.com/spots/map.php?Lan=E&Frec=28&ML=M&Map=W2L&DXC=N&HF=N&GL=N also offers a map of openings AND the ability to post spots all in one place.


There's a number of 10 meter software defined radios that one can use to see where's the band is open. Two are dedicated to the "Beacon Band".

http://userpages.troycable.net/~wj5o/bcn.htm is a list of beacons on Ten. Tune here to see where the band is open, even when it's not.

Ten Meters is one of my favorite bands. Thankfully, there's plenty of tools to take some of the Magic out of the Band.  What is your favorite band?

Saturday, November 03, 2018

Get on board to #hamvention #ARRL with the #hamradio bus

With a tour bus company on board this year, lets go to Hamvention.  Leaving the #ArkCity Kansas area on May 15 and returning May 21, the cost is currently estimated.

Estimated prices are based on a minimum of 30 passengers. With 40 or more passengers, prices will be reduced. We want to confirm 30 or more interested by December 31st.  Then the tour company will release confirmed pricing and open up the reservation process.

This is a sight-seeing tour with hotels and some meals included.

#Hamradio is on board with wifi hotspots for Allstar, DMR, and Dstar included.  Bring your analog and digital walkie-talkies.


The itinerary includes:
Day 1-2
Travel to Xenia OH
(Sightseeing along way thru St. Louis MO & Indianapolis IN as budgeted)

Days 3-5
HamFest 2019 – Xenia OH
Event Schedule, May 17-19, 2019

Day 6-7
Travel Home to Arkansas City KS
(Sightseeing along way thru Louisville KY & St Louis MO as budgeted)


Included in the cost:
  • Roundtrip transportation from Arkansas City KS in a deluxe, late model, air-conditioned Prevost motorcoach along with a courteous and professional driver
  • Christian Tours tour director for the duration of the tour
  • 6 night’s quality hotel accommodations
  • Luggage handling / one piece per passenger
  • Meals included: 6 Continental Breakfasts Plus 3 Additional Meals

30 Passengers – ESTIMATED Price Per Person:
Double $ 1595 - $1695

$350 group deposit is required to book the tour.  The deposit can be applied as payment toward a reservation.  The deposit is refundable until 120 days prior to the departure date.   An individual deposit of $350 is due with each individual’s reservations.  Final payment is due 30 days prior to departure.  Cancellation penalties will begin 30 days prior to departure.  Cancellation insurance is recommended.  Information brochures about optional tour interruption/cancellation insurance are available.

An Early Booking Discount is available!! When a reservation and deposit are received at least 95 days prior to departure, a 2% discount will be applied. If full balance is paid at least 95 days prior to departure AND all payments are made using cash, check or money order (NO Credit Cards), a 5% discount will be applied.






Wednesday, October 31, 2018

Critical Infrastructure Security and Resilience Minth #Infrastrcture

Critical Infrastructure Security and Resilience Month

critical infrastructure
Next month is Critical Infrastructure Security and Resilience Month!
There are 16 critical infrastructure sectors that are important for the safety and security of the United States. These sectors include the power we use at home, the water we drink, transportation that gets us from place to place, and the Internet and communications networks we use to reach friends and family. We all play a part in keeping these sectors safe.
Get involved by learning more about critical infrastructure, cybersecurity efforts, and other initiatives by visiting https://www.dhs.gov/cisr-month. Join the conversation on social media by following @Citizen_Corps, @Prepareathon, and using #infrastructure to post your own tips and news.

Saturday, October 27, 2018

Stay Safe This Halloween


safety tips halloween
Halloween is just around the corner! Whether you’re lighting a jack-o-lantern or making costumes, use these tips to make your Halloween safe and fun.
  • Use flashlights or battery-operated candles for Halloween decorations.
  • Keep Halloween decorations away from open flames, light bulbs, and heaters. Decorations like cornstalks and crepe paper can catch on fire easily.
  • Look for “Flame Resistant” or “Flame Retardant” labels on costumes because candles and flammable costumes can be a dangerous combination. If you make costumes at home, choose flame-resistant fabrics like nylon and polyester.
  • Always have an adult go along with children when trick or treating.
  • Use sidewalks when trick or treating. Cross only at street corners and crosswalks.
To learn more about the causes of Halloween-related fires, visit https://www.usfa.fema.gov/.

Thursday, September 13, 2018

Text Shelter and zip code to 43362 #Florence #ncwx #scwx

Hurricane Florence Response

Text SHELTER and your zip code to 43362 (4FEMA)
FEMA is working with state, local, tribal, and territorial partners to respond to the impacts of the storm.

When it comes to disaster response, the entire community has a role to play.

See FEMA's video, Disaster Response is a Team Effort, to see how this works.

If you are in the path of the storm:
  • Stay safe and take shelter. Everyone should be making final preparations this morning as Hurricane Florence moves towards the United States. Coastal residents in North Carolina, South Carolina, and Georgia may already be seeing tropical storm or hurricane force winds.
  • Communicate with friends and family. Tell them where you are riding out the storm, and how you will let them know you’re safe. You can call, text, email, or use social media.
  • Stay informed. Turn on your TV/radio, or check your city/county website for weather updates and emergency instructions.
  • Keep away from windows. Close storm shutters; flying glass from broken windows could injure you.
  • Prepare for power outages. Turn your refrigerator or freezer to the coldest setting, and open only when necessary. If you lose power, food will last longer. Keep a thermometer in the refrigerator to check food temperature when the power is restored.
  • Listen to local officials for evacuation orders. If you need a safe place to go, text SHELTER and your zip code (i.e. SHELTER 12345) to 4FEMA (43362) to locate an open emergency shelter near you. You can also look up shelters on the FEMA App.
  • Do not drive around barricades, or through high water. Remember, if you encounter flooded roadways, turn around, don’t drown!

During a disaster, information can change quickly and rumors can spread. It's important to verify information before sharing by checking what local, state, and federal authorities are saying first. For up-to-date resources and information, visit the Hurricane Florence page or FEMA.gov
